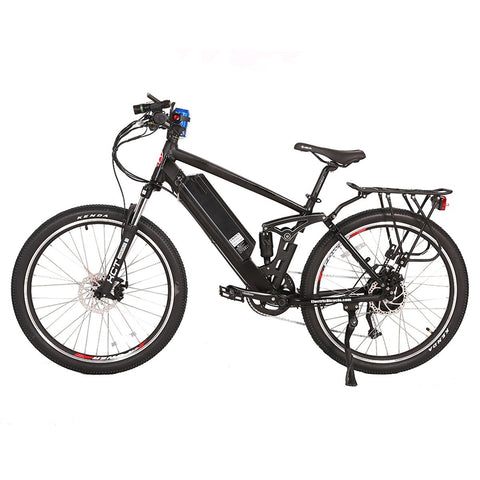

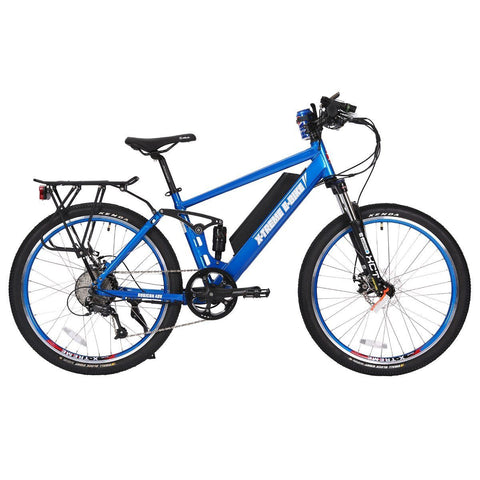

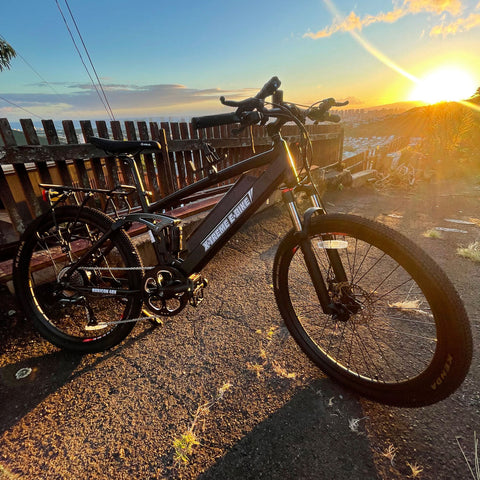

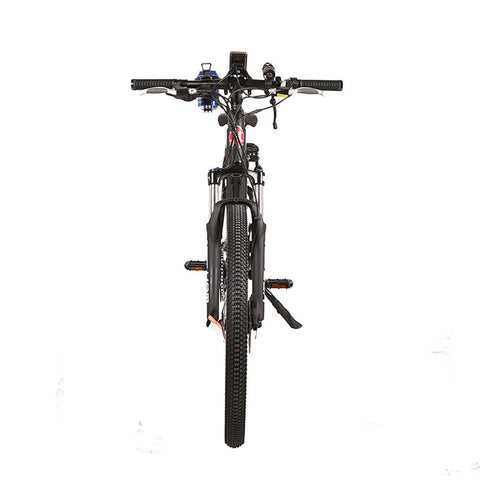

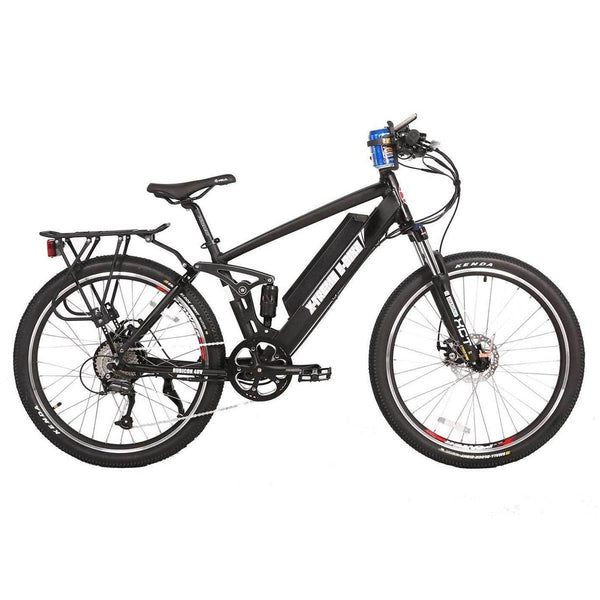

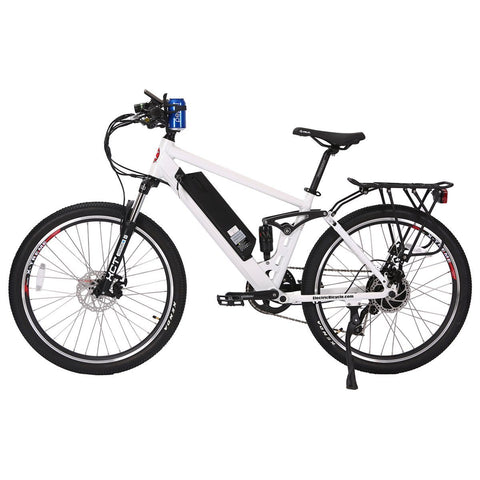

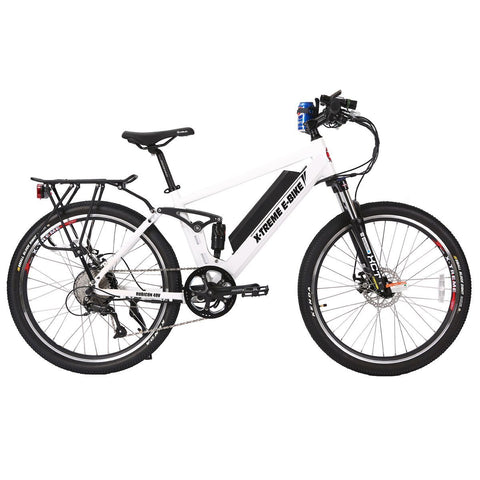

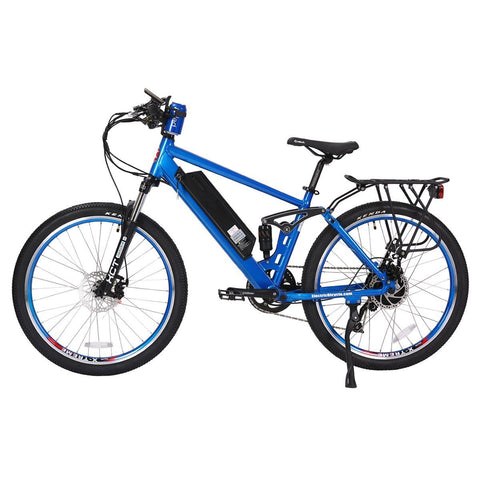

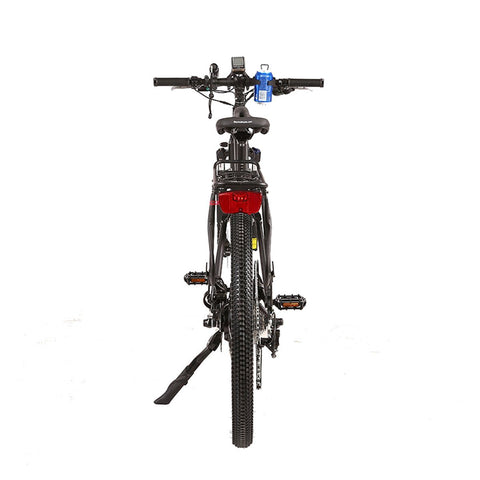

Rubicon Rear Hub Motor Mountain Electric Bicycle by X-Treme
Looking for an electric bike that can really deliver? You’ve arrived! The X-Treme Rubicon Mountain bike cranks out 500 watts, along with the high-torque Bafang clutch motor as a powerful addition to this already robust bike. The Rubicon 48-Volt lithium powered e-bike delivers a smooth ride with substantial power. Made from hand-welded premium aluminum, it is built to last and designed to perfection.
Long Lasting and Light Weight
Made with aluminum wherever possible, this means no rust and a robust bike that is built to withstand the test of time. The completely hand-welded aluminum frame bike has 9-Speed Gears and a shifting system by Atlus Shimano, KS Rear Shock Suspension, Suntour XCT Front Suspension & aluminum rims with a fast release axle on the front and a quick disconnect on the back. The lithium LiFePo4 battery is compact, it’s light, and it mounts to the down tube of the bike frame. Because it is the same color as the frame, it is hardly noticeable.
Electronics that Drive Performance

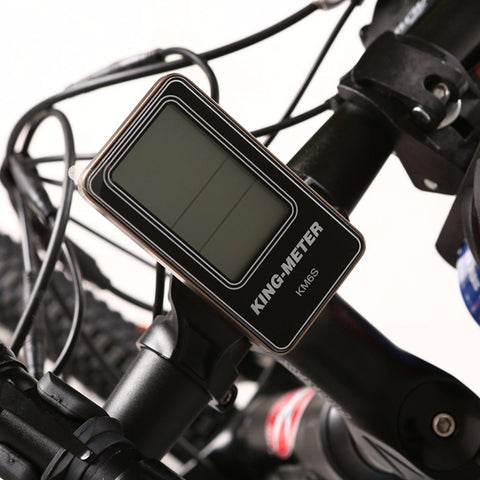

The Rubicon has a King Meter 5-speed SPAS, and all electronics are fully controllable from the LCD on the handlebars. This is because you can choose the consumption method on the LCD easily. The LCD will also tell you the remaining battery, the distance traveled, and your speed. There is also a convenient USB phone charging port.
![]() |
![]() |
![]() |
![]() |
Go Further and Faster
Using Smart PAS will allow your X-Treme Rubicon 48V electric mountain bike to achieve up to 70 miles + before it needs charging again (applicable while using a lower SPAS and pedal assisting on level ground under optimal conditions with a light rider.) The Rubicon bike is faster than any model we sell.
Premium Comfort Assured

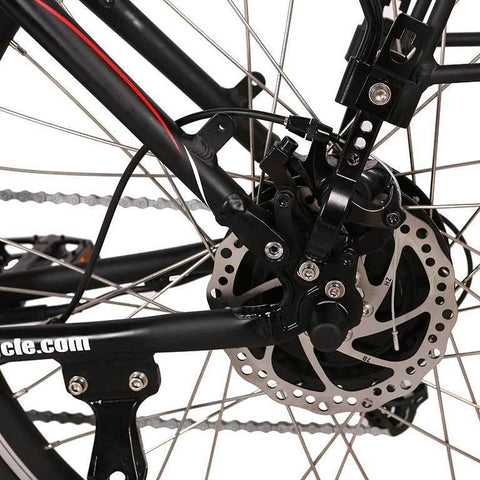

Both front and rear Tektro disk brakes are standard on the electric Rubicon e-bike, ensuring you get sharp and decisive breaking that responds rapidly at all times. The full suspension soaks up all the bumps of the trail or road. Combined with the ultimate VELO hand grips and seat, your ride comfort is absolutely taken care of. A rear rack to hold your belongings is also included.
If you opt to ride the bike with no electric power, you will not be able to feel the resistance of the motor when cycling. However, with a powerful 500-watt, no-resistance, gear rear hub motor and a 48-V battery, this bike can climb hills like a beast all day long. The big disc brakes will stop you as fast as you can get going - even in wet conditions.
An Electric Mountain Bike that Really Delivers
The all-new X-Treme Rubicon is better than ever. It is one of our most popular electric mountain bikes as it offers the full suite of benefits: Speed, Versatility, Comfort, and Affordability.
X-TREME RUBICON MOUNTAIN E-BIKE FEATURES:
- Powerful 500 Watt Motor- enables you to ride along with little pedaling effort
- Ride up to 70 miles on a single charge
- Bicycle is lightweight- can support a body weight of 350 lbs
- USB Charging Port
- High-Quality Drink Holder
- High-End Kenda MountainTires
- Aluminum Parts Throughout
- LCD Display on Handlebars
- Quick Release Features
- PAS with 5-Speed Settings
- Fast and Powerful
- Environmentally friendly- have fun with no guilt!
- Free Shipping
- No Sales Tax
X-TREME RUBICON MOUNTAIN E-BIKE SPECIFICATIONS:
Power | Electric |
Watts | 500 Watts |
Amps | 10.4 AH Integrated Lithium Battery |
Volts | 48 Volts |
Battery | 48 Volt LiPo4 Lithium (lightweight) |
Drive System | Chain Driven by Rear Hub Motor or Pedal Power |
Distance | Up To 70 Miles Range Using Low PAS & Flat Terrain While Pedal Assisting |
Charger | 48 Volt Output UL Certified Charger (Charging Time +/- 3 Hours) |
Tire Size | Kenda Mountain Tire & Tube - 26 x 2.10 Inch on Aluminum Wheels |

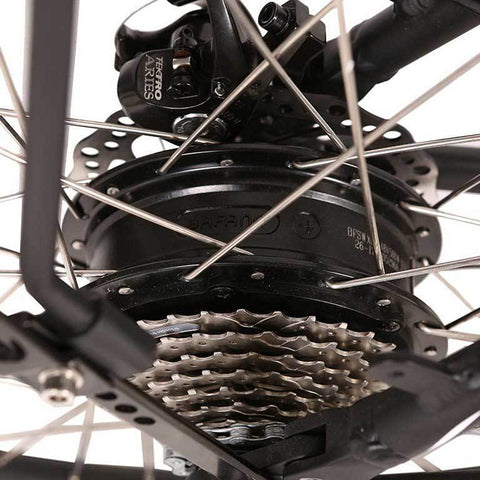

Motor | Bafang 500 Watt Zero Resistance Rear Hub Motor With Clutch |
Controller | 48 Volt 15 Amp Sealed Smart Controller |

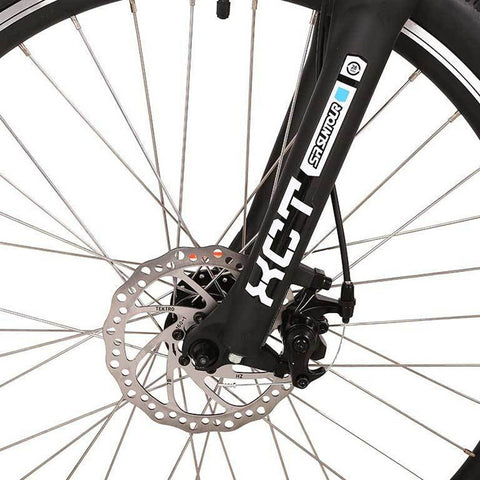

Braking System | Tektro Disk Brakes |
Pedals: | Wellgo Aluminum Pedal Set |
Front Wheel: | Joytech Quick Release Hub |
Throttle Type | Variable Speed Thumb Throttle - SPAS Power Assisted - Pedal Power |
LCD Display | King Meter LCD Smart PAS Digital System With USB Phone Charging Port |

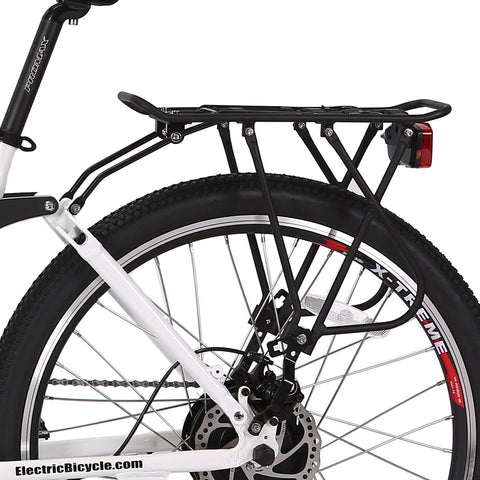

Cargo Rack | Aluminum Rear Carry Rack |
Frame Type/Size | 6061-T6 Temper Aluminum Alloy - Very Lightweight |

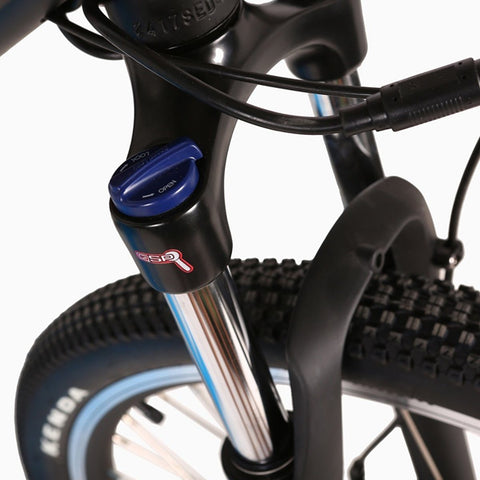

Forks | Suntour® XCT Hydraulic Front Forks |
Suspension | Front Hydraulic Suspension Included & KS Rear Shock Suspension |
Front Sprocket | Aluminum Alloy Sprocket |

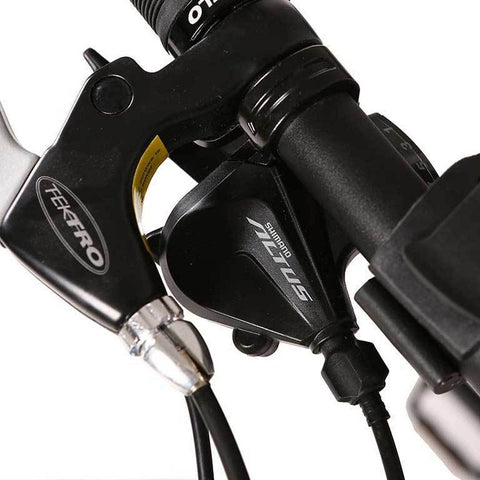

Derailleur | Shimano® 9-Speed Atlus Gears & Shifter |
Seat & Post | Aluminum Alloy Adjustable Seat Post & Velo Mountain Bike Seat |
Quick Release | Front & Rear Wheels Have Quick Release Axles - Flip Lever |
Gooseneck | Aluminum VP |
Handle Bars | Aluminum Alloy Mountain Bike Handle Bars |

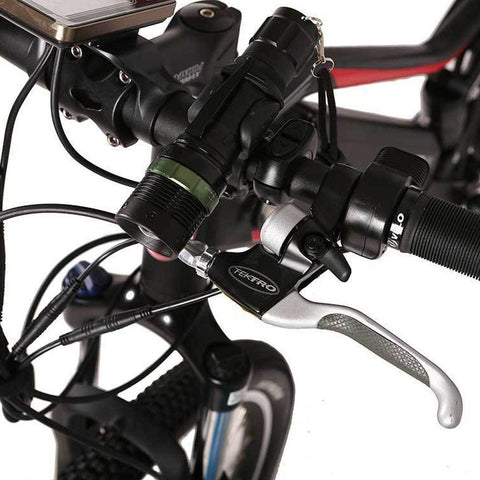

Head Light | Yes, included as free accessory add on - Battery Operated Snap-On LED (Not covered under warranty) |

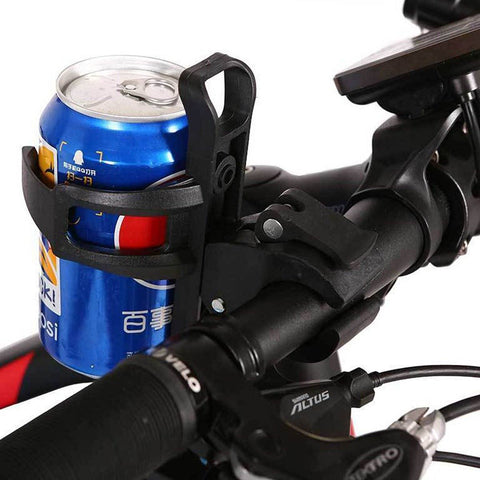

Accessories | Drink Holder On Handle Bars Included |
Bicycle Measurements | Max Seat Height = 38" Inches / Min Seat Height = 30" Inches / Handlebar Height = 37.75" Inches |
Carton Size (L x W x H) | 55 x 9 x 28 |
Bicycle In Box Weight | 69 lbs |
Bicycle Weight | 59.5 lbs |
Suggested Max Weight | 350 lbs. |
Warranty | 1 Year Warranty on bike and battery |
